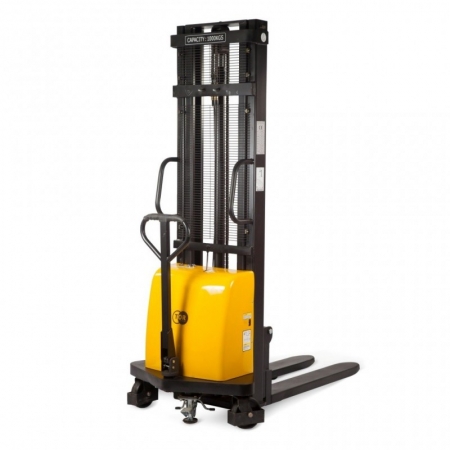

Electro-hydraulic pallet truck DYC1530
| Lifting speed with / without load, mm / s | 130/230 |
| Descent speed with / without load, mm / s | 500/400 |
| Fork roller size, mm | 54 |
| Turning radius, mm | 1326 |
| Battery, Ah | 12/120 |
| Recording height, mm | 85 |
| Lift motor, kW | 12 / 1.6 |
| Total length | 1673 |
| Center of gravity, mm | 500 |
| Overall width, mm | 804/904 |
| Ground clearance, mm | 84 |
| Maximum height, mm | 3532 |
| Charger, V / A | 12/15 |
| Folded height, mm | 2065 |
| Drive wheel size | 160 |
| Load capacity, kg | 1500 |
| Lift height, mm | 3000 |
| Fork length, mm | 1000/1150 |
| Fork width, mm | 550 |
| Weight (KG) | 436 |
Additional specifications on request.
