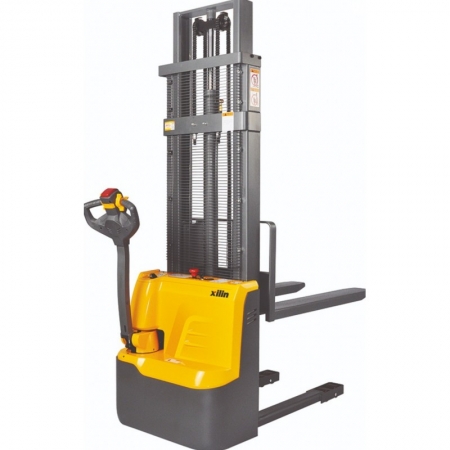

SELF-DRIVING ELECTRIC STACKER 1.2 T, 3.5 M, CDD12R-E

Electric stacker XILIN 1.2 t, 3.5 m CDD12R-ELifting speed with / without load, mm / s: 12/22Descent speed with / without load, mm / s: 14/14Drive wheel size: 80x70Max / min grip position, mm: 670/1300Steps in front, mm: 523Steps behind, mm: 410/525Turning radius, mm: 1356Front wheel size, mm: 195x70Axle load with load front / rear: 515/1063Axle load without load front / rear: 405x145Battery, Ah: 24/105Recording height, mm: 90Lift motor, kW: 2.2Chassis motor, kW: 0.65Brake type: electromagneticWheel material: polyurethaneCenter of gravity, mm: 600Single fork width, mm: 170Ground clearance, mm: 26Noise level, dB: 70Battery weight: 60.8Battery size: 329x172x214Wheel base: 1180Maximum height, mm: 3860Movement: fully electricFolded height, mm: 2340Overall width, mm: 800Climbing performance with load / without load,%: 6/15Movement speed with / without load: 5/6Load capacity, kg: 1200Lift height, mm: 3500Fork length, mm: 1150Fork width, mm: 570/695Fork size, mm: 1150 (1070x570)Additional specifications on request.
