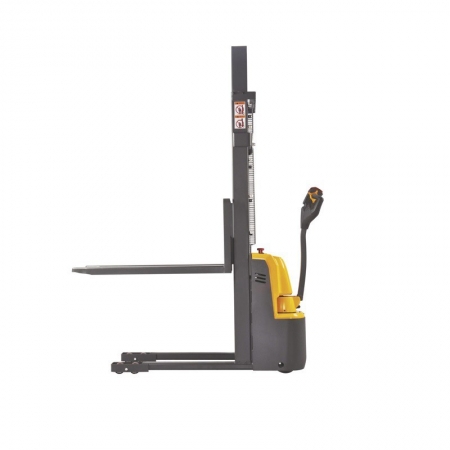

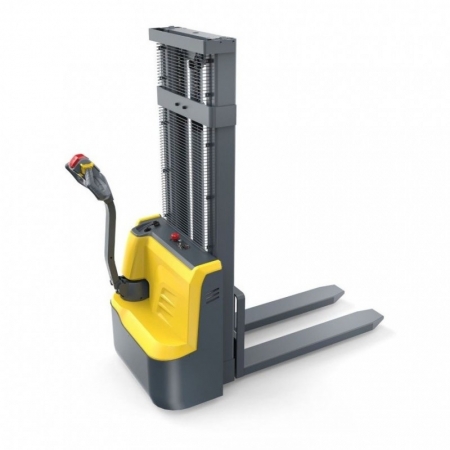

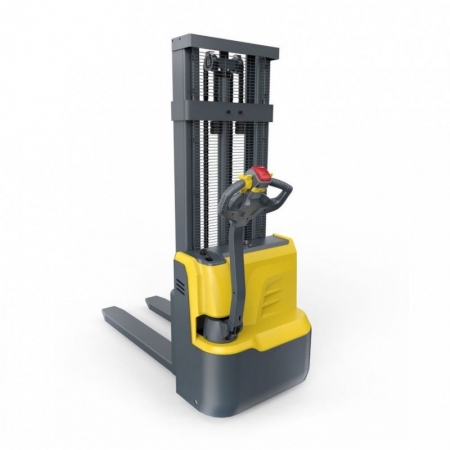

SELF-DRIVING ELECTRIC STACKER 1.2 T, 3.0 M, CDD12R-E
NEW
Electric forklift XILIN 1.2 t, 3.0 m CDD12R-ELifting speed, mm / s: 0.12 / 0.22Turning radius, mm: 1365Front wheel size, mm: Ø195x Ø70Axle load with load front / rear: 515/1063Axle load without load front / rear: 405/145Battery, Ah: 24/105Recording height, mm: 90Lift motor, kW: 2.2Chassis motor, kW: 0.65Brake type: electromagneticTotal length: 1748/1668Wheel material: polyurethaneCenter of gravity, mm: 600Overall width, mm: 800Ground clearance, mm: 26Noise level, dB: 70Battery weight: 60.8Wheel base: 1180Maximum height, mm: 3560Descent rate, mm / s: 0.14Run: fully electricFolded height, mm: 2090Climbing performance with load / without load,%: 6/15Dimensions of the battery, mm: 329x172x214Movement speed with / without load: 5/6Drive wheel size: Ø195x Ø70Load capacity, kg: 1200Lift height, mm: 3000Fork width, mm: 570/695Additional specifications on request.
