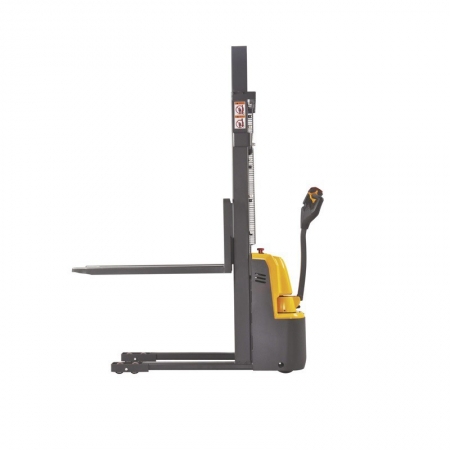

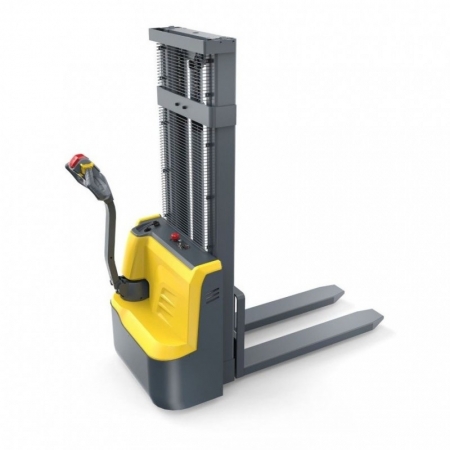

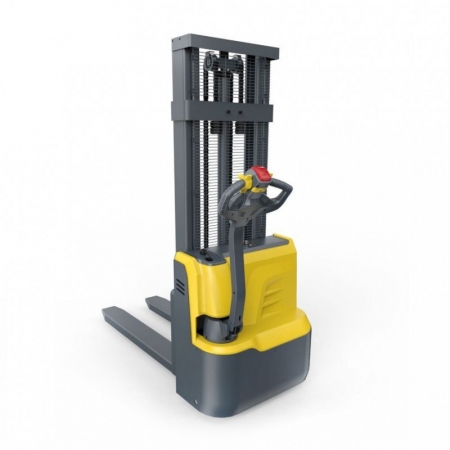

SELF-DRIVING ELECTRIC STACKER 1.2 T, 2.5 M, CDD12R-E

Electric stacker XILIN 1.2 t, 2.5 m CDD12R-E

Lifting speed, mm / s: 0.12 / 0.22
Turning radius, mm: 1365
Axle load with load front / rear: 515/1063
Axle load without load front / rear: 405/145
Battery, Ah: 24/105
Recording height, mm: 90
Lift motor, kW: 2.2
Chassis motor, kW: 0.65
Brake type: electromagnetic
Total length: 1748/1668
Wheel material: polyurethane
Center of gravity, mm: 600
Overall width, mm: 800
Ground clearance, mm: 26
Noise level, dB: 70
Battery weight: 60.8
Wheel base: 1180
Maximum height, mm: 3060
Descent rate, mm / s: 0.14
Run: fully electric
Folded height, mm: 1840
Climbing performance with load / without load,%: 6/15
Dimensions of the battery, mm: 329x172x214
Movement speed with / without load: 5/6
Load capacity, kg: 1200
Lift height, mm: 2500
Fork width, mm: 570/695

Additional specifications on request.
