LEVER WINCH ZNL 1600 KG
NEW

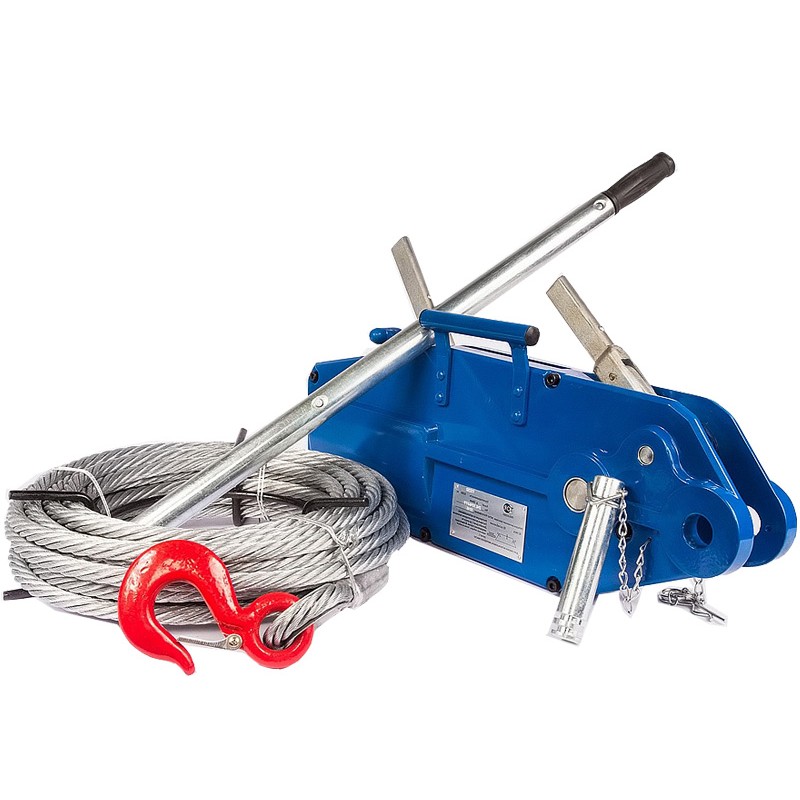

Manual cable winch ZNL 1600, 1.6 t, rope length 20 m
The cable winch is a compact manual lifting device for various applications. It is not only suitable for lifting and lifting, but also for lowering, tensioning, stretching and securing loads. Because of its size, it is ideal for use in tight and narrow spaces. The use of special devices (e.g. fixed or movable) allows not only to increase the lifting capacity, but also to use the mechanism in non-standard conditions.
Additional specifications on request.
The cable winch is a compact manual lifting device for various applications. It is not only suitable for lifting and lifting, but also for lowering, tensioning, stretching and securing loads. Because of its size, it is ideal for use in tight and narrow spaces. The use of special devices (e.g. fixed or movable) allows not only to increase the lifting capacity, but also to use the mechanism in non-standard conditions.
| Width | 97 |
| Rope length, mm | 20,000 |
| Load capacity, kg | 1600 |
| Rope diameter, mm | 11 |
| Nominal forward stroke, mm | 55 |
| Leverage | 441 |
| Rope division, mm | up to 55 |
| Safety factor (rope) | 5 |
| Test load (static), kg | 2000 |
| Effort, kg | 42 |
| Dimensions, mm | 545x97x286 |
| Weight (KG) | 27.10 |
Additional specifications on request.
