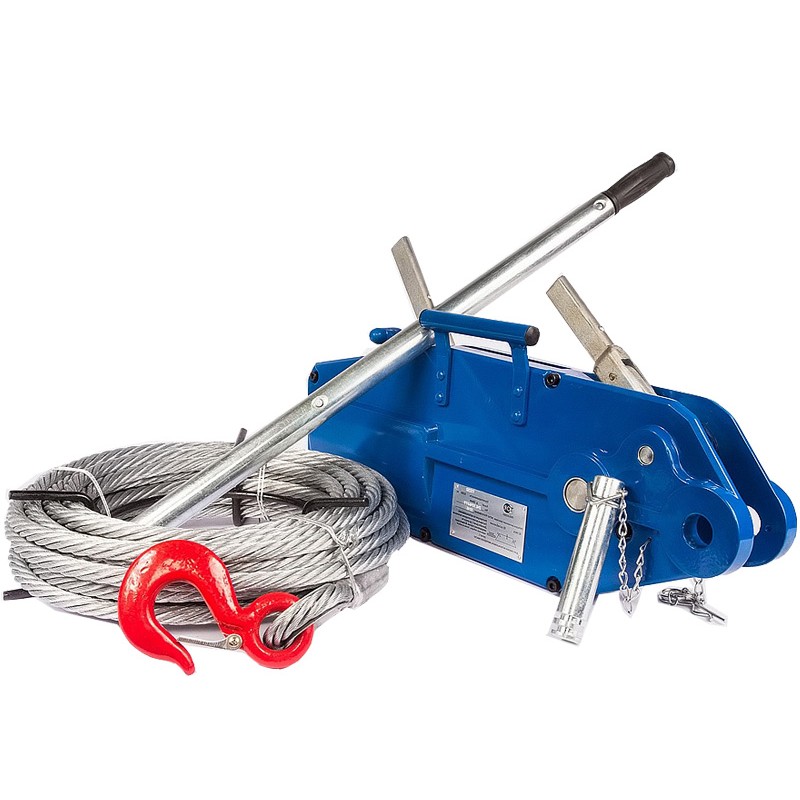

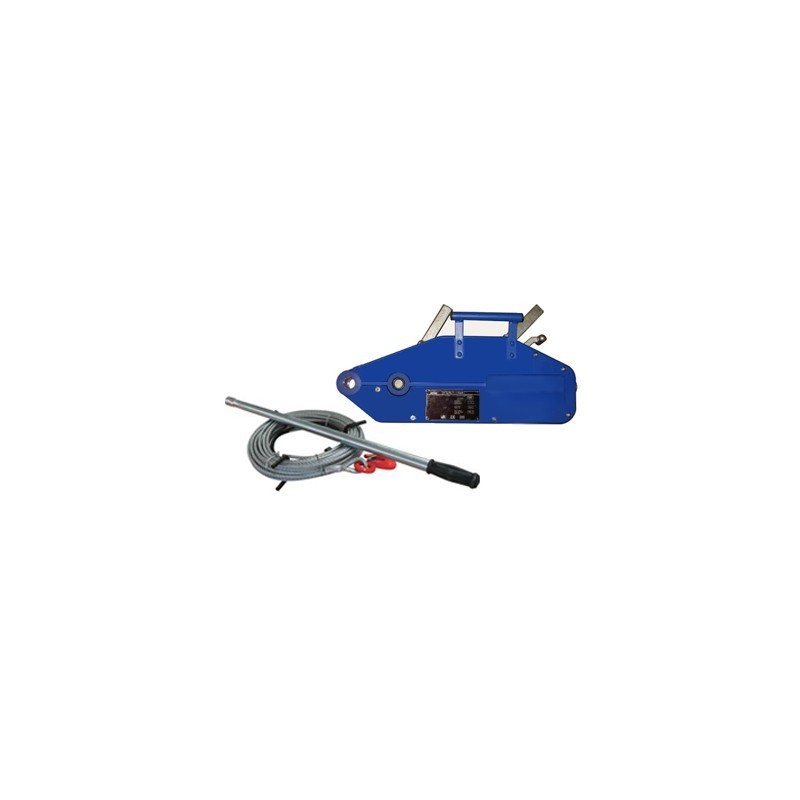

LEVER WINCH ZNL 3200 KG
NEW
Hand winch ZNL 3200
The cable winch is a compact manual lifting device for various applications. It is not only suitable for lifting and lifting, but also for lowering, tensioning, stretching and securing loads. Because of its size, it is ideal for use in tight and narrow spaces. The use of special devices (e.g. fixed or movable) allows not only to increase the lifting capacity, but also to use the mechanism in non-standard conditions.
Additional specifications on request.
The cable winch is a compact manual lifting device for various applications. It is not only suitable for lifting and lifting, but also for lowering, tensioning, stretching and securing loads. Because of its size, it is ideal for use in tight and narrow spaces. The use of special devices (e.g. fixed or movable) allows not only to increase the lifting capacity, but also to use the mechanism in non-standard conditions.
| Rope length, mm | 20 000 |
| Load capacity, kg | 3200 |
| Rope diameter, mm | 16 |
| Handle length, mm | 1200 |
| Nominal stroke forward, mm | 28 |
| Pulling force lever, H | 441 |
| Lay length, mm | 28 |
| Rope strength safety coefficient | 5 |
| Load test static, kg | 4000 |
| Effort, kg | 44 |
| Dimensions, mm | 660x116x325 |
| Weight (KG) | 48.60 |
Additional specifications on request.
