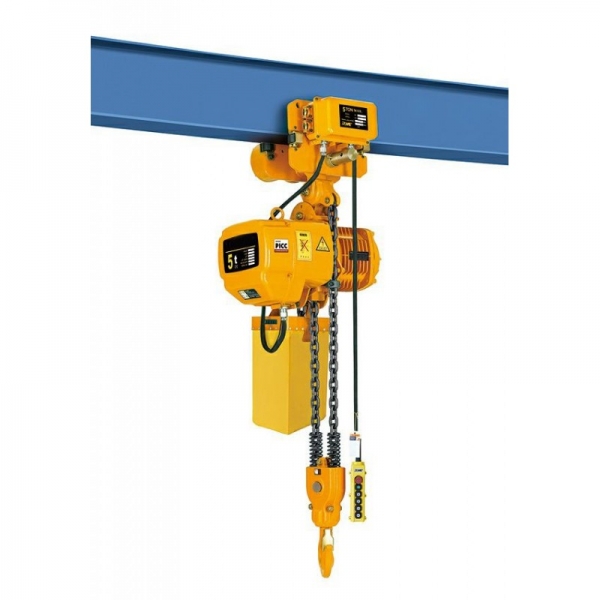

ELECTRIC CHAIN HOIST WITH TROLLEY HHBD 2 t, 12 m
NEW
Electric chain hoist HHBD 2.0 t, 12 m
Additional specifications on request.
Dimensions, mm | 620x940x550 |
Chain thickness, mm | 7x21 |
Pulley type | electric |
Overall height, mm | 770 |
Lift motor, kW | 1.5 |
Movement speed, m / min | 15 |
Chassis motor, kW | 0.4 |
Remote control cable length, m | 10.5 |
Speed per minute | 1440 |
Lifting speed, m / min | 3.4 |
Frequency, Hz | 50 |
Movement type | mobile |
Beam, mm | 82-178 |
Load capacity, kg | 2000 |
Lifting height, mm | 12000 |
Voltage, V | 380 |
Weight (KG) | 109.00 |
Additional specifications on request.
